Brand Name : YORO
Model Number : 1616
Certification : ISO9001, ISO14001, ISO45001Etc.
Place of Origin : Zhejiang, China
MOQ : 500pcs per batch, more quantity might be required for tailor-made sizes
Price : EX WORKS or FOB Ningbo in USD
Payment Terms : T/T before shipment
Supply Ability : 100000 pcs per month
Delivery Time : 25-30 working days
Packaging Details : with a plastic bag inside,and a carton outside
Item Name : Magnetic Lockable Valve
Nominal Size : DN15 DN20 DN25 DN32
Pipe Connections : F1/2" X F1/2', F3/4" X F3/4", F1" X F1", F1.1/4" X F1.1/4" Threaded To BSPP Type
Meter Outlet : M10x1 Female Threaded, Included Cap And PTFE Seal
Strainer : 10 Mesh Stainless Steel
Detection Tube Size : I.D. 7mm
Pressure Rate : 16 Bar Max. Hydraulic
Main Material : Hot Forged Brass 57-3 Body And Bonnet
Flow Direction : One Way As Marked On Body
Operation Mode : Manually Adjustable by Multi-turn
Water Way Seal : Metallic Hard Seal
DN25 DN32 Magnetic Lockable Valve With Stemhead Round Patterned And Bottom
Pipe Connection
|
1/2" |
3/4" |
1" |
1 1/4'' |
DN
|
15 |
20 |
25 |
32 |
![]() |

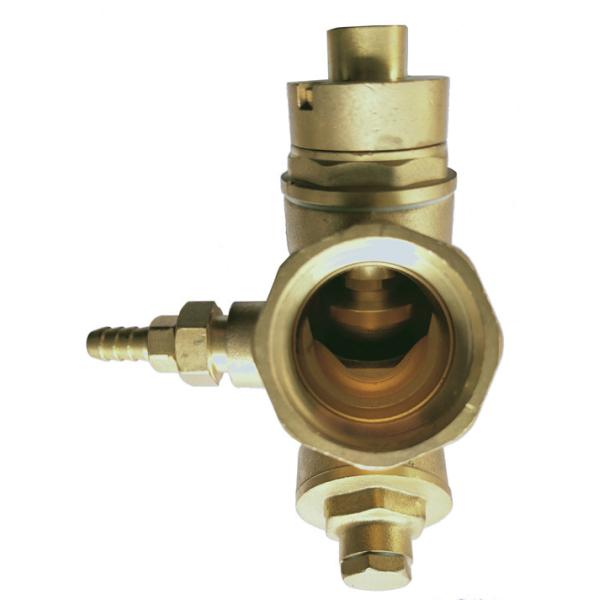

DN25 DN32 Magnetic Lockable Valve With Stemhead Round Patterned And Bottom Images |
